Home  >> Magnetic Buzzer > AC Buzzer > AC-1001N-RPA



External Drive Self Drive SMD Solidstate

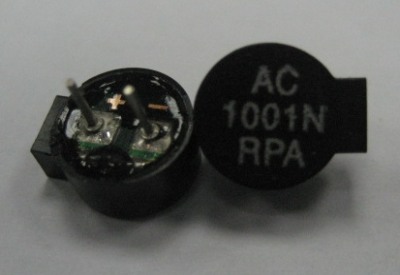

External Drive Buzzer

AC Buzzer

Items   Units Specifications   Conditions
1 Rated Voltage Vo-p 1.5   Vo-p
2 Operating Voltage Vo-p 1.0~3.0
3 Mean Current mA 80   Applying rated voltage, rated frequency
    (Max)     Square wave,1/2 duty subject to standard state.
4 Direct Current Resistance Ohm 5.5±1.0
5 Sound Output dBA (min) 85   Distance at 10cm,applying rated voltage, rated frequency square wave,
6 Rated Frequency Hz 2731   1/2duty subject to standard state.
7 Operating Temp. -40 ~ +85
8 Storage Temp. -50 ~ +95

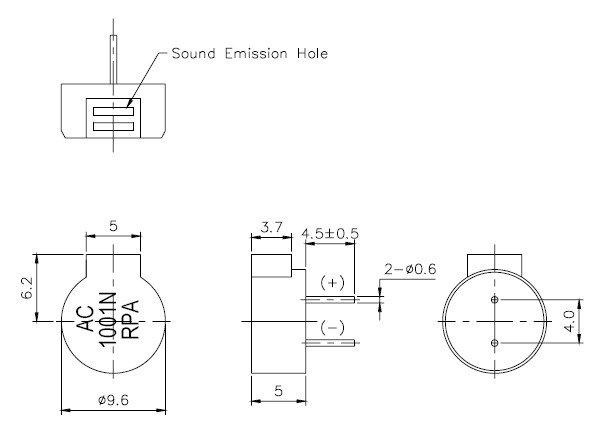

9 Dimension mm Φ 9.6 Height 5 See attached drawing.
10 Weight Gram 0.9
11 Terminal   Two Pins   See attached drawing.

Data Sheet
