Home  >> Magnetic Buzzer > AC Buzzer > AC-1204B-P



External Drive Self Drive SMD Solidstate

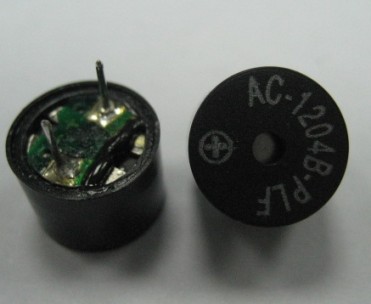

External Drive Buzzer

AC Buzzer

Items   Units Specifications   Conditions
1 Rated Voltage Vo-p 3.5
2 Operating Voltage Vo-p 2.5~6.0
3 Mean Current mA 35   Applying rated voltage,rated frequency
    (Max)     Square wave,1/2 duty subject to standard state.
4 Direct Current Resistance Ohm 42
5 Sound Output dBA 85   Distance at 10cm,applying rated voltage,rated frequency square wave,
    (min)     1/2duty subject to standard state.
6 Rated Frequency Hz 2048
7 Operating Temp. -30 ~ +70
8 Storage Temp. -40 ~ +80

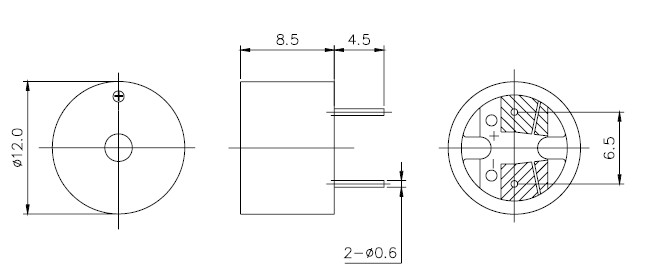

9 Dimension mm Φ 12.0 Height 8.5 See attached drawing.
10 Weight Gram 2
11 Terminal   Two Pins   See attached drawing.

Data Sheet
