Home  >> Magnetic Buzzer > AC Buzzer > AC-1403G



External Drive Self Drive SMD Solidstate

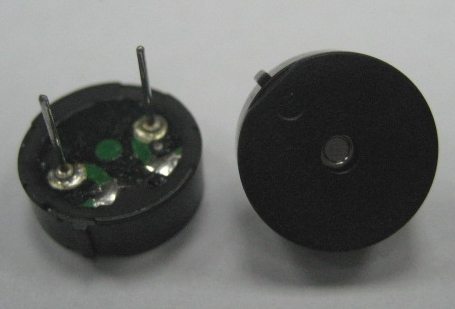

External Drive Buzzer

AC Buzzer

Items   Units Specifications   Conditions
1 Rated Voltage Vo-p 3.0
2 Operating Voltage Vo-p 2.0~4.0
3 Mean Current mA 35   Applying rated voltage,rated frequency
    (Max)     Square wave,1/2 duty subject to standard state.
4 Direct Current Resistance Ohm 40
5 Sound Output dBA 85   Distance at 10cm,applying rated voltage,rated frequency square wave,
    (min)     1/2duty subject to standard state.
6 Rated Frequency Hz 2000
7 Operating Temp. -30 ~ +85
8 Storage Temp. -40 ~ +95

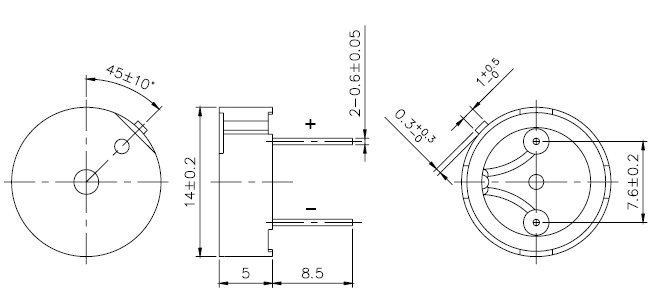

9 Dimension mm Φ 14.0 Height 5.0 See attached drawing.
10 Weight Gram 2
11 Terminal   Two Pins   See attached drawing.

Data Sheet
