External Drive Buzzer

AC Buzzer

Items   Units Specifications   Conditions
1 Rated Voltage Vo-p 1.5
2 Operating Voltage Vo-p 1.0~3.0
3 Mean Current mA 80   Applying rated voltage,rated frequency
    (Max)     Square wave,1/2 duty subject to standard state.
4 Direct Current Resistance Ohm 6
5 Sound Output dBA 70   Distance at 10cm,applying rated voltage,rated frequency square wave,
    (min)     1/2duty subject to standard state.
6 Rated Frequency Hz 3000
7 Operating Temp. -30 ~ +75
8 Storage Temp. -40 ~ +85

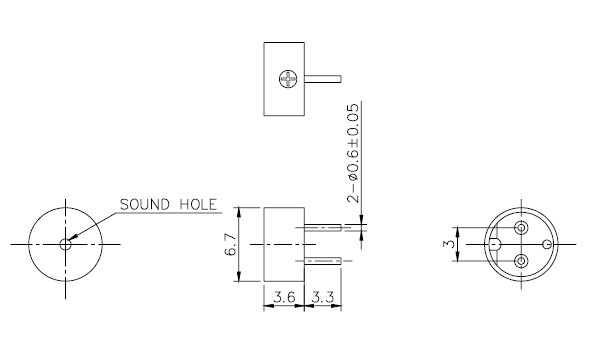

9 Dimension mm Φ 6.7 Height 3.6 See attached drawing.
10 Weight Gram 1
11 Terminal   Two Pins   See attached drawing.

Data Sheet
