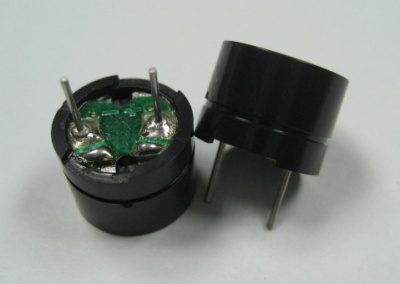

External Drive Buzzer

AC Buzzer

Items   Units Specifications   Conditions
1 Rated Voltage Vo-p 5.0
2 Operating Voltage Vo-p 3.0~8.0
3 Mean Current mA     Applying rated voltage,rated frequency
    (Max) 40   Square wave,1/2 duty subject to standard state.
4 Direct Current Resistance Ohm 50
5 Sound Output dBA 85   Distance at 10cm,applying rated voltage,rated frequency square wave,
    (min)     1/2duty subject to standard state.
6 Rated Frequency Hz 2000
7 Operating Temp. -30 ~ +85
8 Storage Temp. -40 ~ +95

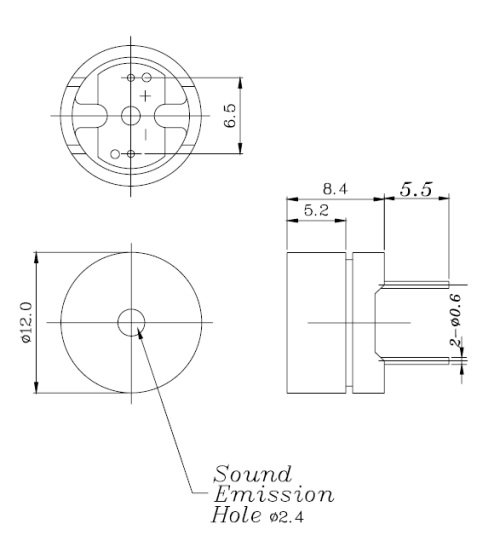

9 Dimension mm Φ 12.0 Height 8.4 See attached drawing.
10 Weight Gram 2
11 Terminal   two pins   See attached drawing.

Data Sheet
