Home  >> Magnetic Buzzer > DC Buzzer > AX-1005



External Drive Self Drive SMD Solidstate

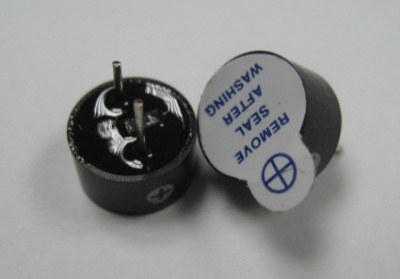

Self Drive Buzzer

DC Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 5 Response Time 500 mSec
2 Operating Voltage VDC 3 ~ 7 Volts D.C
3 Consumption Current mA Mean 25 Applying rated voltage
    (Max) Peak 75
4 Direct Current Resistance Ohm None
5 Sound Output dBA 80 Distance at 10cm,applying rated voltage
    (min)
6 Basic Frequency Hz 2500± 200
7 Operating Temp. -20 ~ +75
8 Storage Temp. -30 ~ +85
9 Weight Gram 2

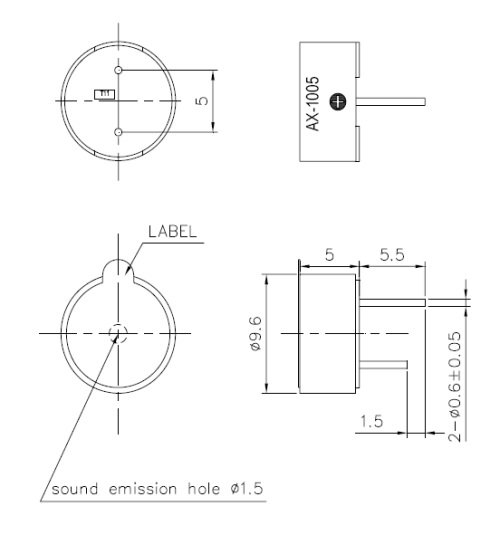

Data Sheet
