| Items |
|
Units |
Specifications |
|
Conditions |
| 1 |
Rated Voltage |
VDC |
12 |
|
Volts D.C. |
| 2 |
Operating Voltage |
VDC |
9 ~ 15 |
|
Volts D.C |
| 3 |
Mean Current |
mA |
25 (Max) |
|
Applying rated voltage |
| 4 |
Direct Current Resistance |
Ohm |
None |
|
|
| 5 |
Sound Output |
dBA |
80(min) |
|
Distance at 10cm,applying rated voltage |
| 6 |
Basic Frequency |
Hz |
2500± 200 |
|
|
| 7 |
Operating Temp. |
℃ |
-40 ~ +85 |
|
|
| 8 |
Storage Temp. |
℃ |
-50 ~ +95 |
|
|
| 9 |

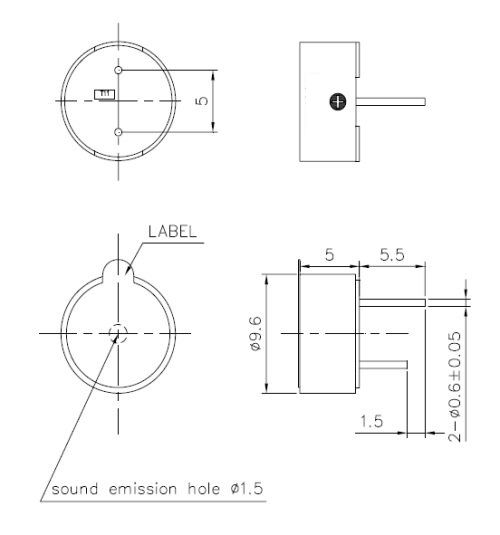

Dimension |
mm |
Φ 9.6 |
Height 5.0 |
See attached drawing. |
| 10 |
Weight |
Gram |
1 |
|
|
| 11 |
Terminal |
|
Two Pins |
|
See attached drawing. |
