Home  >> Magnetic Buzzer > SMD Buzzer > AD-1305-GU2



External Drive Self Drive SMD Solidstate

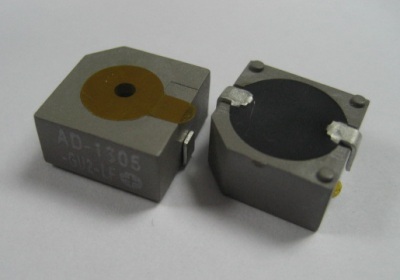

SMD Buzzer

SMD Buzzer

  Items Units Specifications
1 Rated Voltage Vo-p 5.0
2 Operating Voltage Vo-p 3 ~ 7
3 Consumption Current mA 40 (max)
4 Sound Pressure Label dB 87 (min)
5 Resonant Frequency Hz 2400
6 Coil Resistance Ω 45
7 Operating Temp. -20 ~ +70
8 Storage Temp. -40 ~ +85
9 Weight Gram 2.0















Data Sheet
