Home  >> Magnetic Buzzer > SMD Buzzer > AD-7504-MA1



External Drive Self Drive SMD Solidstate

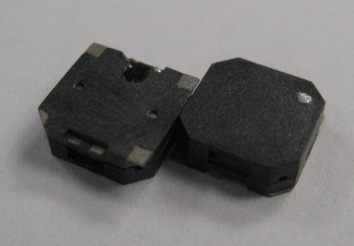

SMD Buzzer

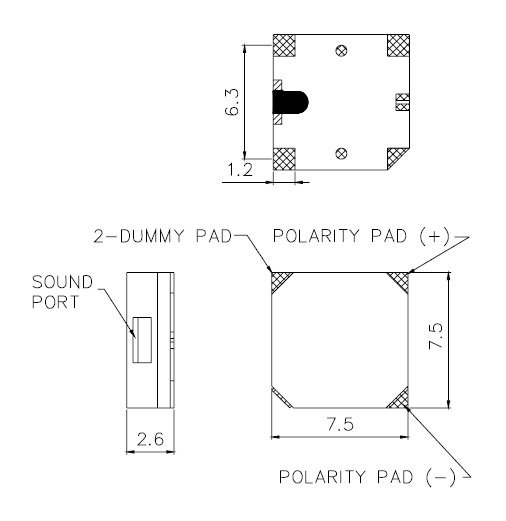

SMD Buzzer

  Items Units Specifications
1 Rated Voltage Vo-p 3.6
2 Operating Voltage Vo-p 3 ~ 4.5
3 Consumption Current mA 100(max)
4 Sound Pressure Label dB 87(min)
5 Resonant Frequency Hz 2500
6 Coil Resistance Ω 15 ± 3
7 Operating Temp. -30 ~ +75
8 Storage Temp. -40 ~ +85
9 Weight Gram 0.5















Data Sheet
