Home  >> Magnetic Buzzer > SMD Buzzer > AV-9004-CX2



External Drive Self Drive SMD Solidstate

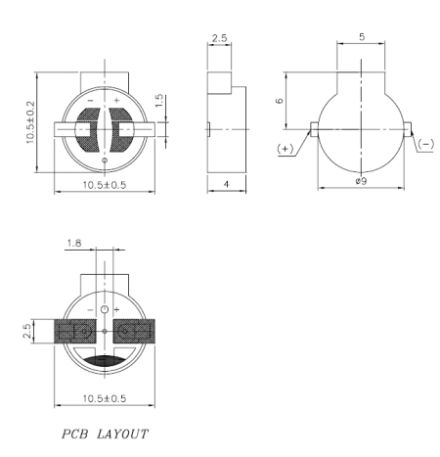

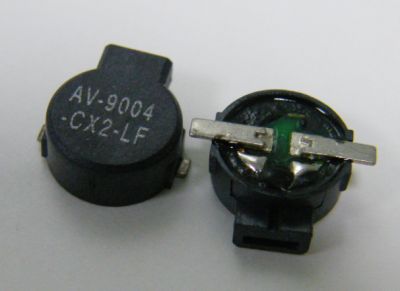

SMD Buzzer

SMD Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vo-p 3.6 Vo-p
2 Operating Voltage Vo-p 3.0 ~ 4.0 0V
3 Consumption Current mA Mean 100 Standard State, Standard Drive Circuit.
    (max) Peak 300 Rated Voltage,Rated Frequency ,Distance
4 Sound Output dB(min) 85 at 10 cm free air,Square Wave 1 / 2 Duty
5 Resonant Frequency Hz 2731
6 Coil Resistance Ω 15 ± 3 At Basic State
7 Operating Temp. -30 ~ +75
8 Storage Temp. -40 ~ +85
9 Weight Gram 0.5

















Data Sheet
