Home  >> Magnetic Buzzer > SMD Buzzer > AV-9004-DX



External Drive Self Drive SMD Solidstate

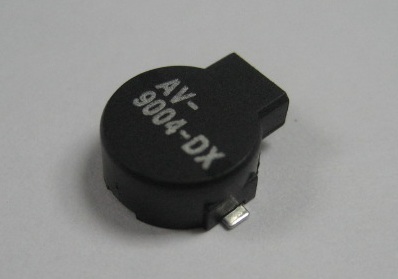

SMD Buzzer

SMD Buzzer

  Items Units Specifications
1 Rated Voltage Vo-p 3.6
2 Operating Voltage Vo-p 2.5 ~ 4.5
3 Consumption Current mA 100 (max)
4 Sound Pressure Label dB 85 (min)
5 Resonant Frequency Hz 3000
6 Coil Resistance Ω 16 ± 3
7 Operating Temp. -30 ~ +70
8 Storage Temp. -40 ~ +85
9 Weight Gram 1.0















Data Sheet
