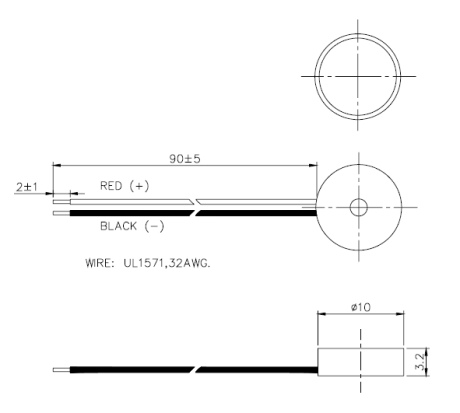

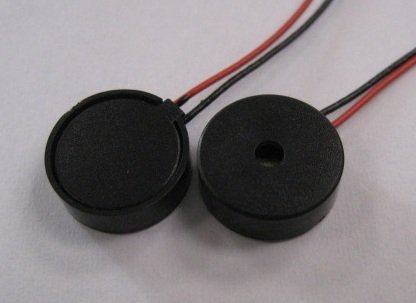

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 1-30
3 Rated Current mA(Max) 5 10Vp-p / 3.2KHz
4 Sound Output At 10cm dBA(Min) 80 At 10Vp-p / 3.2KHz
5 Resonant Frequency Hz 3200
6 Capacitance at 120Hz pF 11000±30%
7 Operating Temp. -20 ~ +60
8 Storage Temp. -20 ~ +70
9 Weight g 1















Data Sheet
