Home  >> Piezo Buzzer > External Drive > AZ-1348E-W



External Drive Self Drive SMD Element

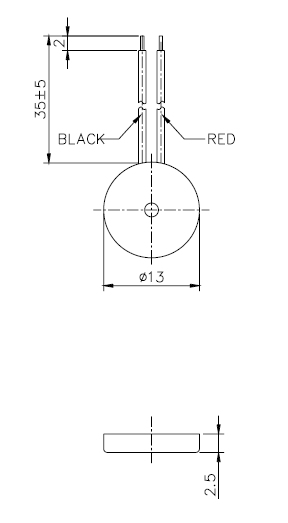

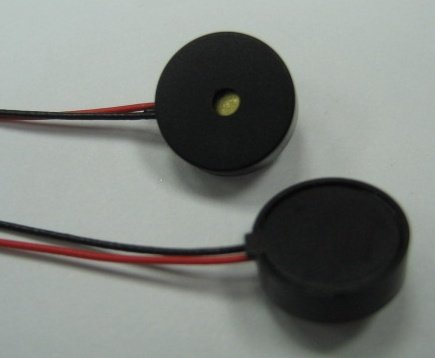

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 1~30
3 Rated Current mA(Max) 5 10Vp-p / 4.8KHz
4 Sound Output At 10cm dBA(Min) 80 At 10Vp-p / 4.8KHz
5 Resonant Frequency Hz 4800±500
6 Capacitance at 1KHz pF 15000±30%
7 Operating Temp. -20 ~ +70
8 Storage Temp. -30~ +80
9 Weight g 1















Data Sheet
