Home  >> Piezo Buzzer > External Drive > AZ-2425E-P



External Drive Self Drive SMD Element

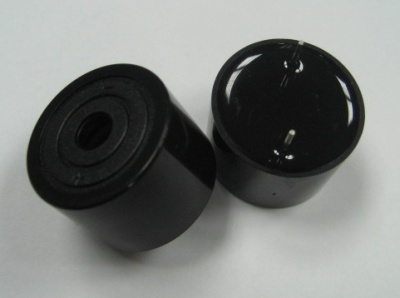

Piezo Buzzer

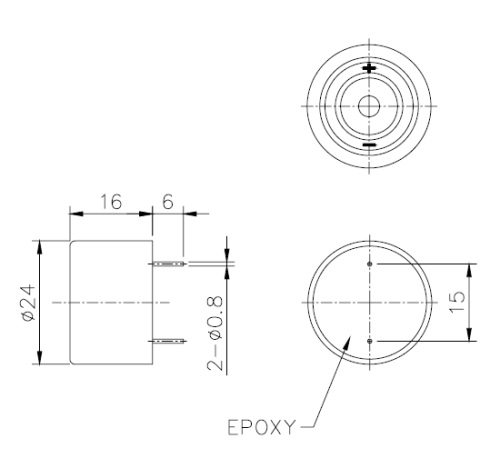

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 12 Square Wave
2 Operating Voltage Vp-p 3~30
3 Rated Current mA(Max) 10 At 12 Vp-p
4 Sound Output At 10cm dBA(Min) 90 At 12 Vp-p
5 Resonant Frequency Hz 2500±500
6 Capacitance at 120Hz pF 70000±30%
7 Operating Temp. -20 ~ +70
8 Storage Temp. -30 ~ +80
9 Weight g 5















Data Sheet
