Home  >> Piezo Buzzer > External Drive > AZ-3028E-P



External Drive Self Drive SMD Element

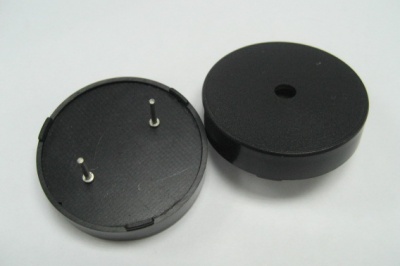

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 2~30
3 Rated Current mA(Max) 8 At 10 Vp-p
4 Sound Output At 10cm dBA(Min) 90 At 10 Vp-p
5 Resonant Frequency Hz 2800±500
6 Capacitance at 120Hz pF 18000±30%
7 Operating Temp. -20 ~ +60
8 Storage Temp. -30 ~ +70
9 Weight g 2















Data Sheet
