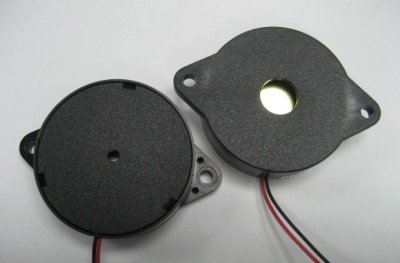

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 1-28
3 Rated Current mA(Max) 10
4 Sound Output At 10cm dBA(Min) 8
5 Resonant Frequency Hz 1000
6 Capacitance at 120Hz pF 77000
7 Operating Temp. -20 ~ +70
8 Storage Temp. -20 ~ +80
9 Weight g 10















Data Sheet
