Home  >> Piezo Buzzer > Element > AE-1265E-W



External Drive Self Drive SMD Element

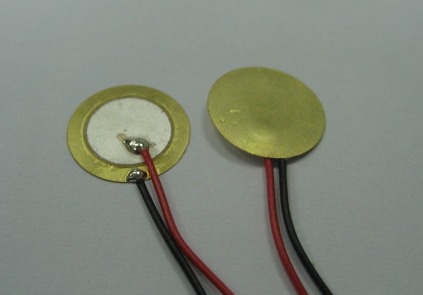

Piezo Ceramic Element

Piezo Buzzer

ITEM   CONDITION
01 Type. External-drive type sound element
02 Resonant Frequency (KHz) 6.5 ±1.5 at 25 ± 2℃, 45~60% RH
03 Resonant Impedance (OHM) 1200 OHM Max. at 25 ±2℃, 45~60% RH
04 Capacity (PF) 13000±30% at 1.0KHz 1Vrms
05 Input Voltage 30Vp-p Max
06 Plate Material Brass
07 Lesd Wire Spec. Awg32, UL1571
08 Operating Temperature (℃) -30 to +75
09 Storage Temperature (℃) -40 to +85

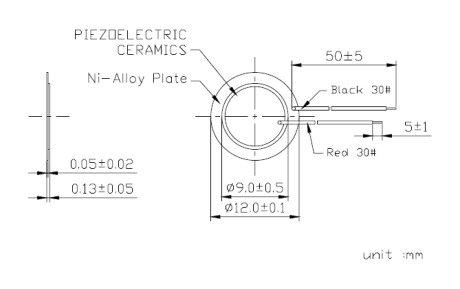

Data Sheet
