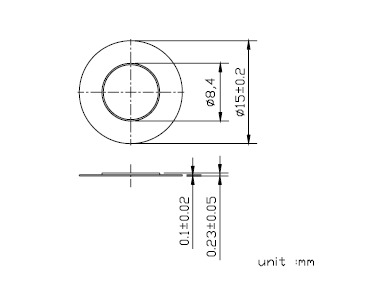

Home  >> Piezo Buzzer > Element > AE-1541E-N



External Drive Self Drive SMD Element

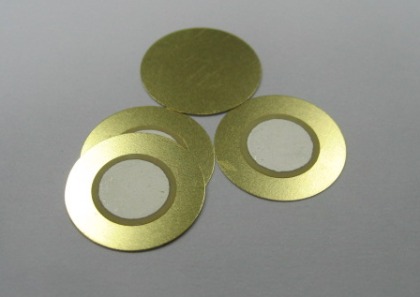

Piezo Ceramic Element

Piezo Buzzer

ITEM   CONDITION
01 Type. external -drive type sound element
02 Resonant Frequency (KHz) 4.1 ± 0.5at 25± 2℃, 45~60% RH
03 Resonant Impedance (OHM) 1000 OHM Max. at 25± 2℃, 45~60% RH
04 Capacity (PF) 8000 ± 30% at 1.0KHz 1Vrms
05 Plate Material Brass
06 Operating Temperature (℃) -20 to +60
07 Storage Temperature (℃) -20 to +70













Data Sheet
