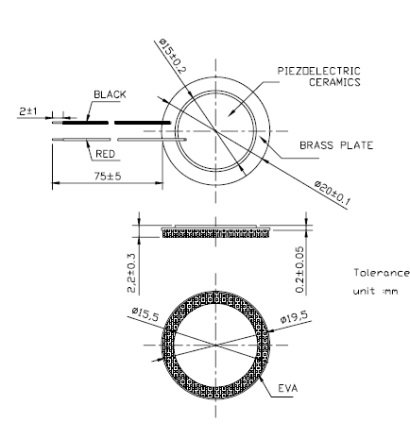

Home  >> Piezo Buzzer > Element > AE-2040E-WV



External Drive Self Drive SMD Element

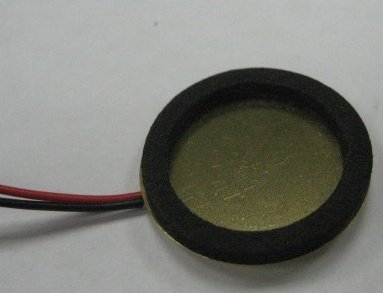

Piezo Ceramic Element

Piezo Buzzer

ITEM CONDITION
1 Type. External-drive type sound element
2 Input Voltage (Vp-p) 30 (Max)
3 Resonant Frequency (KHz) 4.0 ±0.5 at 25 ±2℃, 45~60% RH
4 Resonant Impedance (OHM) 300 Max. at 25 ±2℃, 45~60% RH
5 Capacity (PF) 26,000 ±30% at 1.00KHz 1Vrms
6 Plate Material Brass
7 Operating Temperature -20℃ to +70℃
8 Lead Wire Spec. AWG30 , 35±5mm















Data Sheet
