Home  >> Piezo Buzzer > Element > AE-2064E-N



External Drive Self Drive SMD Element

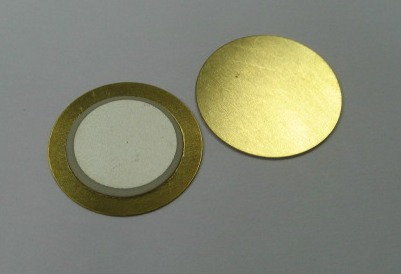

Piezo Ceramic Element

Piezo Buzzer

ITEM   CONDITION
01 Type. External -drive type sound element
02 Resonant Frequency (KHz) 6.4± 0.5 at 25± 2℃, 45~60% RH
03 Resonant Impedance (OHM) 300 OHM Max. at 25± 2℃, 45~60% RH
04 Capacity (PF) 12,000±30% at 1000 Hz 1Vrms
05 Plate Material Brass
07 Operating Temperature (℃) -20 to +60
08 Storage Temperature (℃) -20 to +70













Data Sheet
