| ITEM |
|
CONDITION |
| 01 |
Type. |

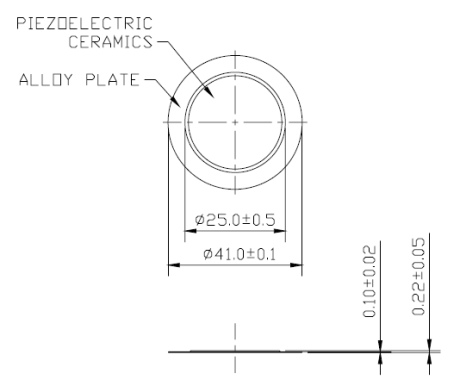

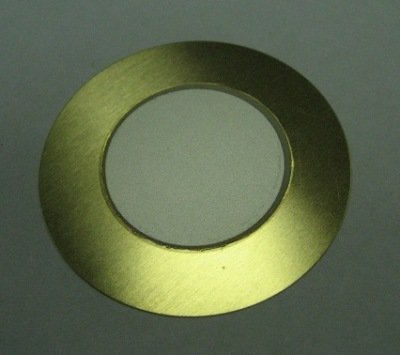

External -drive type sound element |
| 02 |
Resonant Frequency (KHz) |
0.8±0.2 at 25± 2℃, 45~60% RH |
| 03 |
Input Voltage |
30Vp-p Max |
| 04 |
Resonant Impedance (OHM) |
1200 OHM Max. at 25± 2℃, 45~60% RH |
| 05 |
Capacity (PF) |
72,000±30% at 1KHz 1Vrms |
| 06 |
Plate Material |
Alloy |
| 07 |
Operating Temperature (℃) |
-20 to +60 |
| 08 |
Storage Temperature (℃) |
-20 to +70 |
