Home  >> Piezo Buzzer > SMD > APD-1405-KX2



External Drive Self Drive SMD Element

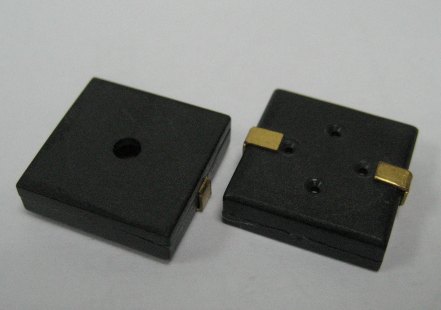

SMD Piezo Buzzer

SMD Piezo Buzzer

Items Units Specifications Conditions
1 Rated Voltage Vp-p 5 (square wave)
2 Operating Voltage Vp-p 1~25
3 Rated Current mA(Max) 5
4 Sound Output At 10cm dBA(Min) 70 At 5Vp-p ,4.1KHz / 10cm
5 Resonant Frequency Hz 4100±500
6 Capacitance pF 13000±30% At 1KHz
7 Operating Temp. ℃ -20 ~ +70
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 1















Data Sheet
