Home  >> Piezo Buzzer > SMD > APD-1603-KP2



External Drive Self Drive SMD Element

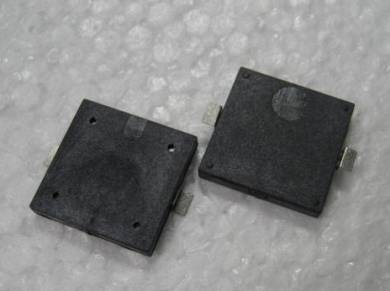

SMD Piezo Buzzer

SMD Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 3 Square Wave
2 Operating Voltage Vp-p 1.0~25.0 Square Wave
3 Consumption Current mA(max) 2 .Rated Voltage, Distance at 10 cm free air
4 Sound Pressure Label dB(min) 70 4000Hz, Square Wave
5 Resonant Frequency Hz 4000±500
6 Static Capacitance nF 14.0±30% At 1.0KHz
7 Operating Temp. -20 ~ +70
8 Storage Temp. -30 ~ +80

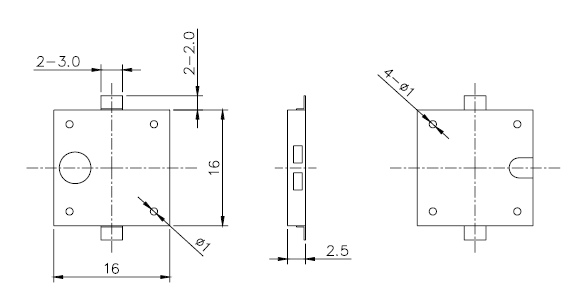

9 Dimension mm 16 x 16 x 2.5 See attached drawing.
10 Weight g 1

















Data Sheet
