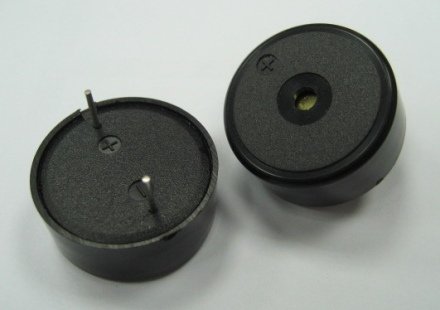

Home  >> Piezo Buzzer > Self Drive > AZ-2335S-P



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 1.5~28
3 Rated Current mA(Max) 10 At 12 VDC
4 Sound Output At 10cm dBA(Min) 85 At 12VDC
5 Resonant Frequency Hz 3500±500
6 Operating Temp. -20 ~ +60
7 Storage Temp. -30 ~ +70
8 Tone Nature   Single
9 Weight g 4

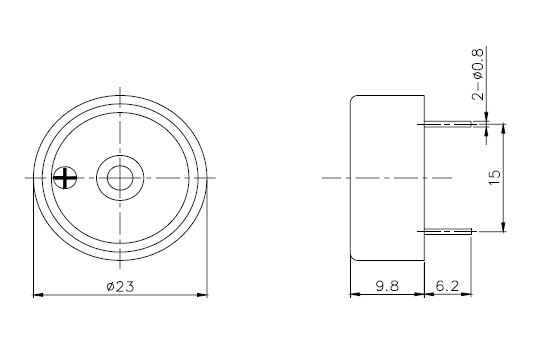

Data Sheet
