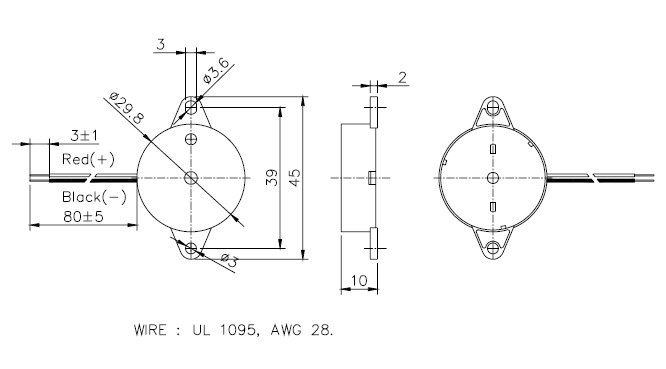

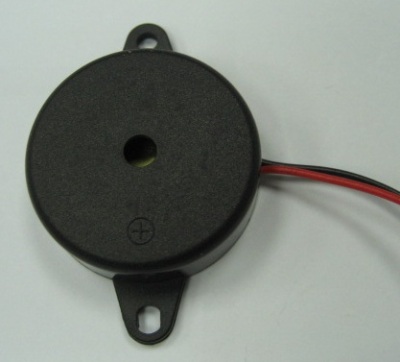

Home  >> Piezo Buzzer > Self Drive > AZ-3025S-W



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3 ~ 28
3 Rated Current mA(Max) 15 At 12VDC
4 Sound Output dBA(Min) 90 At 12VDC / 10cm
5 Resonant Frequency Hz 2500±500
6 Tone Nature   SINGLE
7 Operating Temp. ℃ -20 ~ +60
8 Storage Temp. ℃ -20 ~ +70
9 Weight g 8















Data Sheet
