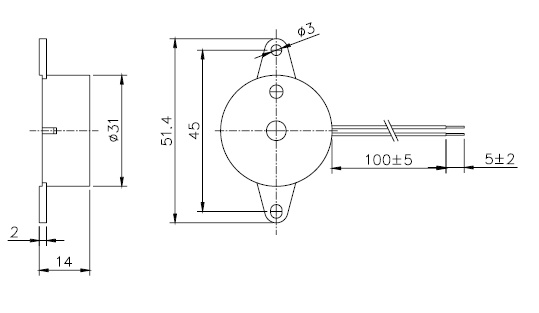

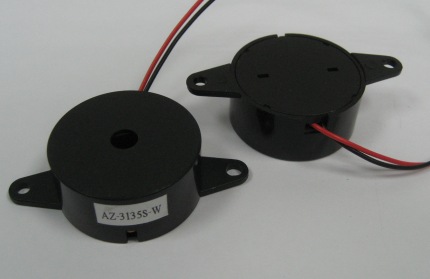

Home  >> Piezo Buzzer > Self Drive > AZ-3135S-W



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 9
2 Operating Voltage VDC 3-20
3 Rated Current mA(Max) 9 At 9VDC
4 Sound Output At 30cm dBA(Min) 95 At 9VDC
5 Resonant Frequency Hz 3500±500
6 Operating Temp. -20 ~ +60
7 Storage Temp. -30 ~ +70
8 Tone Nature   Single
9 Weight g 7.5















Data Sheet
