Home  >> Piezo Buzzer > Self Drive > AZ-3447S-W



External Drive Self Drive SMD Element

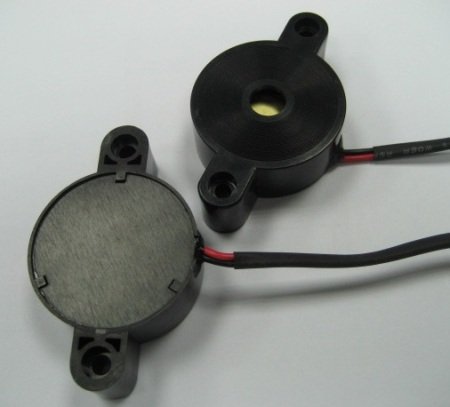

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3~18
3 Rated Current mA(Max) 16 At 12VDC
4 Sound Output At 100cm dBA(Min) 80 At 12VDC
5 Resonant Frequency Hz 4900±700
6 Tone Nature   CONTINUEOUS
7 Operating Temp. ℃ -30 ~ +80
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 30















Data Sheet
