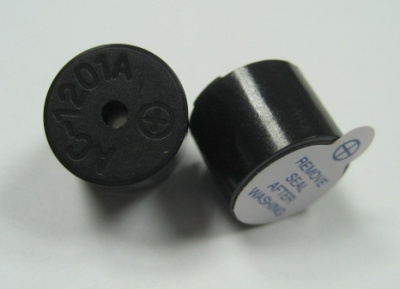

External Drive Buzzer

AC Buzzer

Items   Units Specifications   Conditions
1 Rated Voltage Vo-p 1.5
2 Operating Voltage Vo-p 1~2
3 Mean Current mA 40   Applying rated voltage,rated frequency
    (Max)     Square wave,1/2 duty subject to standard state.
4 Direct Current Resistance Ohm 16
5 Sound Output dBA 85   Distance at 10cm,applying rated voltage,rated frequency square wave,
    (min)     1/2duty subject to standard state.
6 Rated Frequency Hz 2800
7 Operating Temp. -30 ~ +75
8 Storage Temp. -40 ~ +85

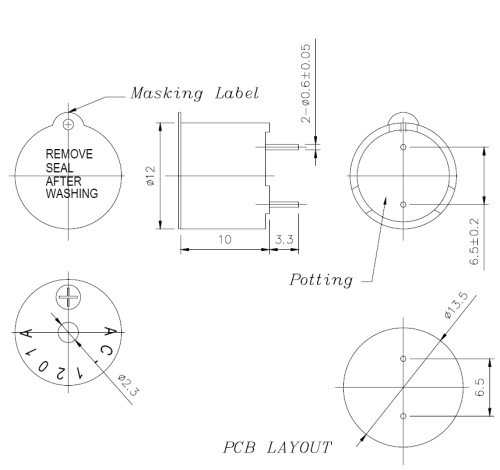

9 Dimension mm Φ 12.0 Height 10.0 See attached drawing.
10 Weight Gram 2
11 Terminal   Two Pins   See attached drawing.

Data Sheet
