Home  >> Piezo Buzzer > External Drive > AZ-1658E-WV



External Drive Self Drive SMD Element

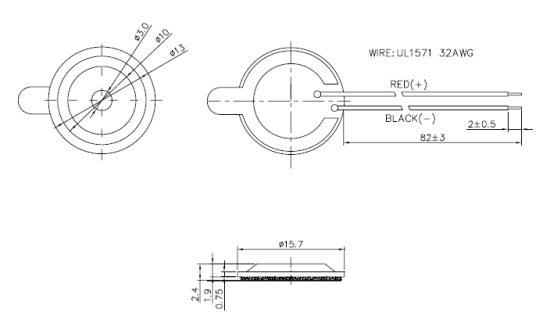

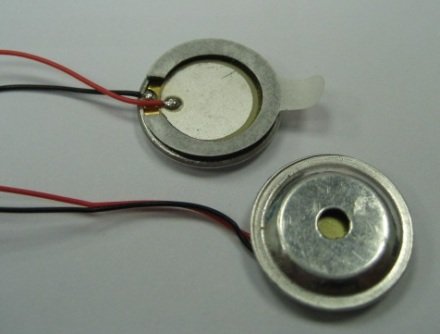

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 3 (square wave)
2 Operating Voltage Vp-p 1~5
3 Rated Current mA(Max) 10
4 Sound Output At 10cm dBA(Min) 65 At 3Vp-p ,5.8KHz / 10cm
5 Resonant Frequency Hz 5800±500
6 Capacitance pF 14000±30% At 120Hz
7 Operating Temp. ℃ -20 ~ +70
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 2















Data Sheet
