Home  >> Piezo Buzzer > External Drive > AZ-1740E-PD



External Drive Self Drive SMD Element

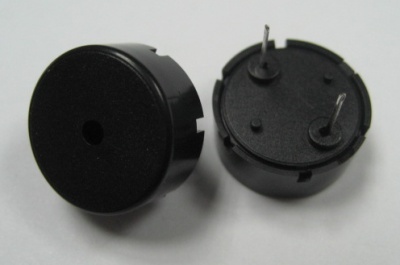

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 (square wave)
2 Operating Voltage Vp-p 5 ~ 30
3 Rated Current mA(Max) 9
4 Sound Output At 10cm dBA(Min) 85 At 10Vp-p ,4KHz / 10cm
5 Resonant Frequency Hz 4000
6 Capacitance pF 10000 ±30% At 120Hz
7 Operating Temp. ℃ -40 ~ +70
8 Storage Temp. ℃ -50 ~ +80
9 Weight g 1















Data Sheet
