Home  >> Piezo Buzzer > External Drive > AZ-2240E-PU



External Drive Self Drive SMD Element

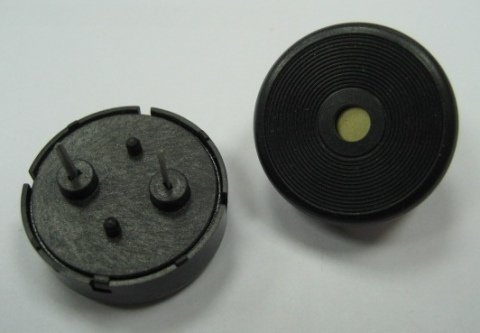

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 9 Square Wave
2 Operating Voltage Vp-p 1~30
3 Rated Current (Max) mA 7
4 Min Sound Output dBA 85 at 4.0Kz / 10cm
5 Resonant Frequency Hz 4000±500
6 Operating Temp. ℃ -20 ~ +70
7 Storage Temp. ℃ -30 ~ +70
8 Capacitance at 120 Hz pF 15000 ± 30%
9 Weight g 3
10 Lead Pin Material   Beryllium Bronze

















Data Sheet
