Home  >> Piezo Buzzer > External Drive > AZ-2324E-P



External Drive Self Drive SMD Element

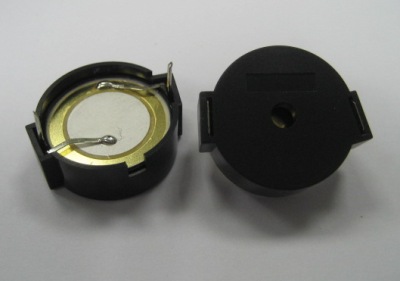

Piezo Buzzer

Piezo Buzzer

Items Units Specifications Conditions
Rated Voltage Vp-p 10 (square wave)
Operating Voltage Vp-p 3 ~ 30
Rated Current mA(Max) 6
Sound Output At 10cm dBA(Min) 85 At 10Vp-p ,2.4KHz / 10cm
Resonant Frequency Hz 2400
Capacitance pF 20000 ±30% At 120Hz
Operating Temp. ℃ -30 ~ +75
Storage Temp. ℃ -40 ~ +85
Weight g 2















Data Sheet
