Home  >> Piezo Buzzer > External Drive > AZ-2326E-P



External Drive Self Drive SMD Element

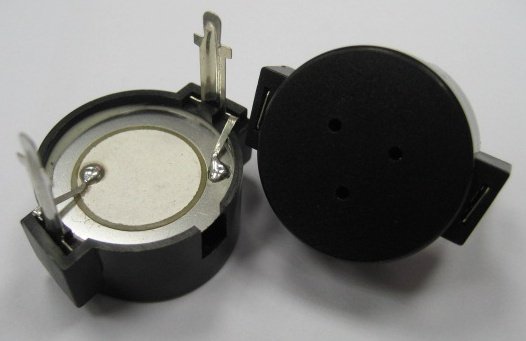

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 12 (square wave)
2 Operating Voltage Vp-p 6 ~ 24
3 Rated Current mA(Max) 9
4 Sound Output At 10cm dBA(Min) 90 At 12Vp-p ,2.6KHz / 10cm
5 Resonant Frequency Hz 2600
6 Capacitance pF 20000 ±30% At 120Hz
7 Operating Temp. ℃ -30 ~ +75
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 3















Data Sheet
