Home  >> Piezo Buzzer > External Drive > AZ-2455E-W



External Drive Self Drive SMD Element

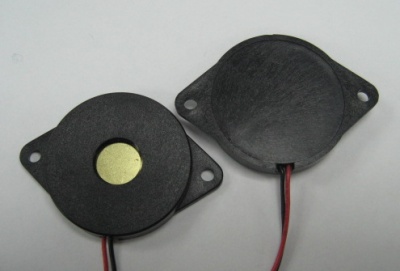

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 15 Square Wave
2 Operating Voltage Vp-p 3-30
3 Rated Current mA(Max) 13
4 Sound Output At 10cm dBA(Min) 90
5 Resonant Frequency Hz 5500
6 Capacitance at 120Hz pF 18000±30%
7 Operating Temp. ℃ -20 ~ +70
8 Storage Temp. ℃ -20 ~ +80
9 Weight g 2















Data Sheet
