Home  >> Piezo Buzzer > External Drive > AZ-3035E-A



External Drive Self Drive SMD Element

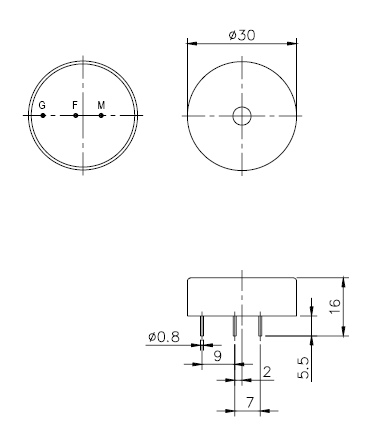

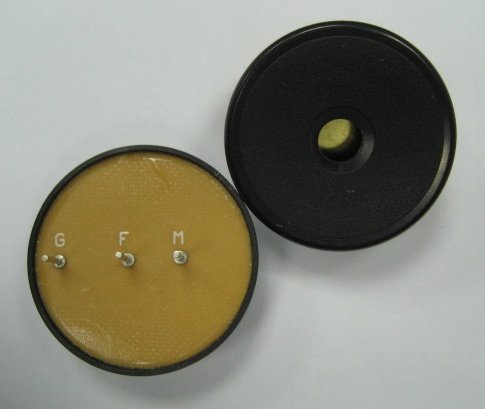

Piezo Buzzer

Piezo Buzzer circuit

Item   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3 ~ 20
3 Rated Current mA(Max) 20 At 12VDC / 3.5KHz
4 Sound Output At 10 cm dBA(Min) 88 At 12VDC / 3.5KHz
5 Resonant Frequency Hz 3500±500
6 Operating Temp. ℃ -20 ~ +70
7 Storage Temp. ℃ -30 ~ +80
8 Weight g 5















Data Sheet
