Home  >> Piezo Buzzer > External Drive > AZ-3511E-C



External Drive Self Drive SMD Element

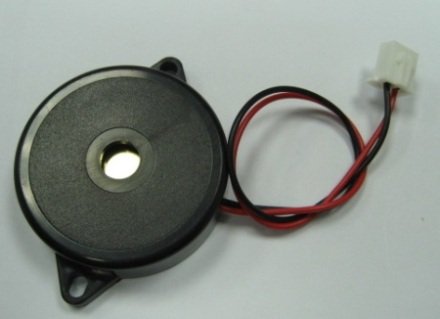

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 1-30
3 Rated Current (Max) mA 9
4 Min Sound Output dB 85 at 1.1Kz / 10cm
5 Resonant Frequency Hz 1100±500
6 Operating Temp. ℃ -20 ~ +60
7 Storage Temp. ℃ -30 ~ +80
8 Capacitance at 120 Hz pF 50000 ± 30%
9 Weight g 5















Data Sheet
