Home  >> Piezo Buzzer > External Drive > AZ-4228E-W



External Drive Self Drive SMD Element

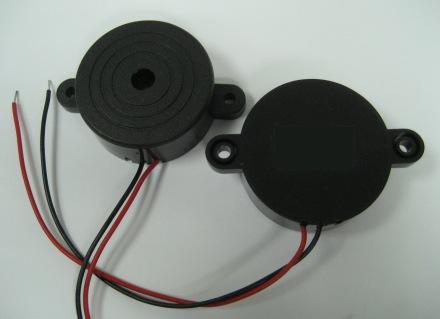

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 12 Square Wave
2 Operating Voltage Vp-p 1-30
3 Rated Current (Max) mA 9
4 Min Sound Output dB 90 at 2.8KHz / 30cm
5 Resonant Frequency Hz 2800±500
6 Operating Temp. ℃ -20 ~ +60
7 Storage Temp. ℃ -30 ~ +80
8 Capacitance at 120 Hz pF 35000 ± 30%
9 Weight g 10















Data Sheet
