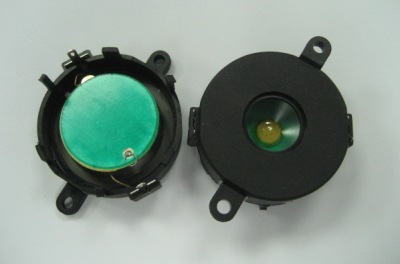

Home  >> Piezo Buzzer > External Drive > AZ-4530E-P



External Drive Self Drive SMD Element

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications   Conditions
1 Continuous Voltage Vp-p Square Wave Sine Wave
      50 85
2 Intermittent Voltage Vp-p Square Wave Sine Wave
      60 100
3 Sound Output At 30cm dBA(Min) 100   At 12Vp-p Square WAVE / 3KHz
4 Resonant Frequency Hz 2.2K – 4.0 K
5 Capacitance at 120Hz nF 140±30%
7 Operating Temp. ℃ -40 ~ +105
8 Storage Temp. ℃ -40 ~ +105
9 Weight g 11.5±2

















Data Sheet
