Home  >> Piezo Buzzer > External Drive > AZ-4720E-W



External Drive Self Drive SMD Element

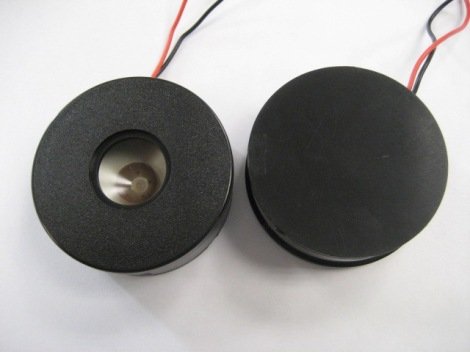

Piezo Buzzer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 10 Square Wave
2 Operating Voltage Vp-p 1~30
3 Rated Current mA(Max) 30 At 10Vp-p / 2.0KHz
4 Sound Output At 30 cm dBA(Min) 100 At 10Vp-p / 2.5~3.5KHz
5 Frequency Range Hz 2.0K-10K
6 Leadwire AWG28
7 Operating Temp. ℃ -20 ~ +60
8 Storage Temp. ℃ -20 ~ +70
9 Weight g 12.5

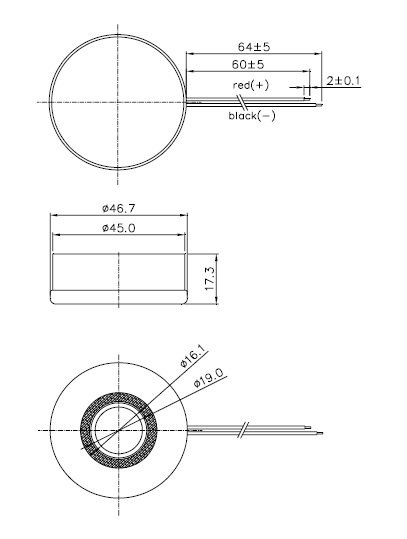

Data Sheet
