| ITEM |
|
CONDITION |
| 1 |
Type. |

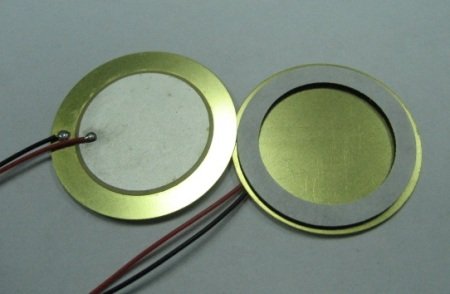

External-drive type sound element |
| 2 |
Resonant Frequency (KHz) |
2.0 ±0.3 at 25 ±2℃, 45~60% RH |
| 3 |
Resonant Impedance (OHM) |
800 Max. at 25 ±2℃, 45~60% RH |
| 4 |
Capacity (PF) |
45,000 ±30% at 1K Hz 1Vrms |
| 5 |
Plate Material |
Brass |
| 6 |
Input Voltage |
30Vp-p Max |
| 7 |
Operating Temperature |
-20℃ to +60℃ |
| 8 |
Storage Temperature |
-20℃ to +70℃ |
