| ITEM |
|
CONDITION |
| 01 |
Type. |

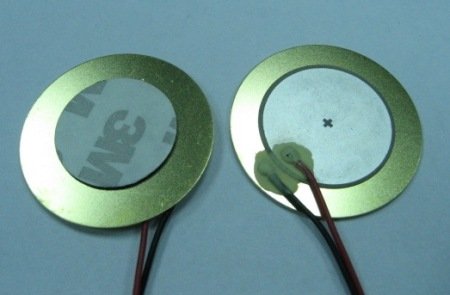

External -drive type sound element |
| 02 |
Resonant Frequency (KHz) |
2.8±0.4at 25± 2℃, 45~60% RH |
| 03 |
Resonant Impedance (OHM) |
500 OHM Max. at 25± 2℃, 45~60% RH |
| 04 |
Capacity (PF) |
35000±30 % at 1.0KHz 1Vrms |
| 05 |

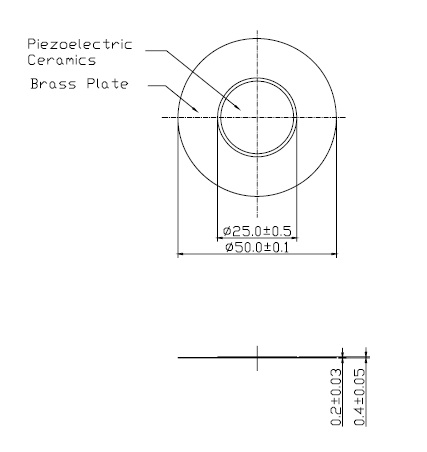

Plate Material |
Brass |
| 06 |
Operating Temperature (℃) |
-20 to +60 |
| 07 |
Storage Temperature (℃) |
-20 to +70 |
