Home  >> Piezo Buzzer > SMD > APD-1305A



External Drive Self Drive SMD Element

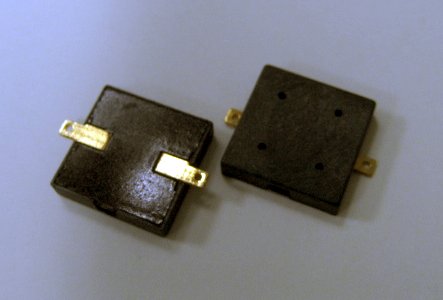

SMD Piezo Buzzer

SMD Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 5 (square wave)
2 Operating Voltage Vp-p 3~25
3 Rated Current mA(Max) 8
4 Sound Output dBA(Min) 75 At 5Vp-p ,4.1KHz / 10cm
5 Resonant Frequency Hz 4100
6 Capacitance pF 16000±30% At 120Hz
7 Operating Temp. ℃ -30 ~ +75
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 0.5















Data Sheet
