Home  >> Piezo Buzzer > SMD > APD-1405-S1



External Drive Self Drive SMD Element

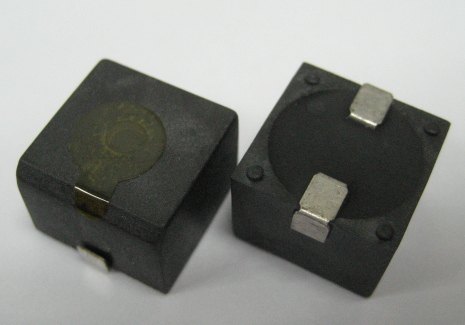

SMD Piezo Buzzer

SMD Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 5 (square wave)
2 Operating Voltage Vp-p 3 ~ 20
3 Rated Current mA(Max) 8
4 Sound Output Level dBA(Min) 80 At 5Vp-p ,3.3KHz / 10cm
5 Resonant Frequency Hz 3300
6 Capacitance pF 15000±30% At 120Hz
7 Operating Temp. ℃ -20 ~ +60
8 Storage Temp. ℃ -30 ~ +70
9 Weight g 2.5















Data Sheet
