External Drive Self Drive SMD Element

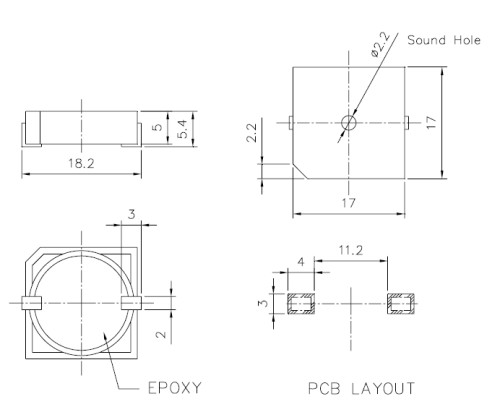

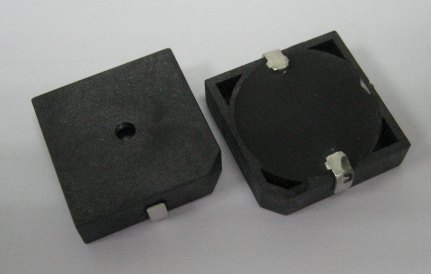

SMD Piezo Buzzer

SMD Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage Vp-p 9 (square wave)
2 Operating Voltage Vp-p 6~18
3 Rated Current mA(Max) 5
4 Sound Output dBA(Min) 85 At 9Vp-p , 3.2K Hz / 10cm
5 Resonant Frequency Hz 3200
6 Capacitance pF 15000±30% At 120Hz
7 Operating Temp. ℃ -30 ~ +75
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 0.5















Data Sheet
