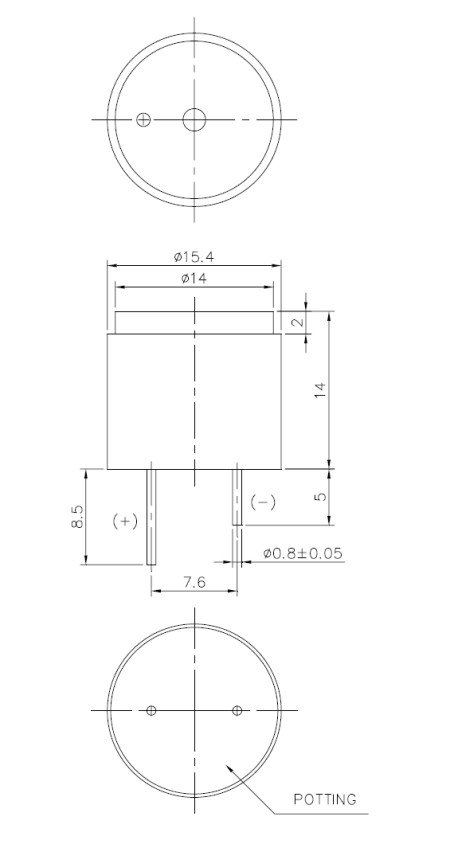

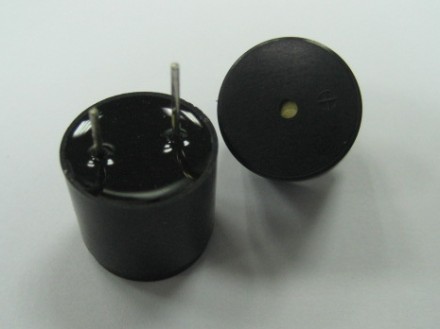

Home  >> Piezo Buzzer > Self Drive > AZ-1540S-P



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 6 ~ 18
3 Rated Current (Max) mA 30 At 12 VDC
4 Min Sound Output dBA 90 At 12 VDC / 10cm
5 Resonant Frequency Hz 4000±500
6 Tone Nature Single
7 Operating Temp. ℃ -30 ~ +75
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 2.5















Data Sheet
