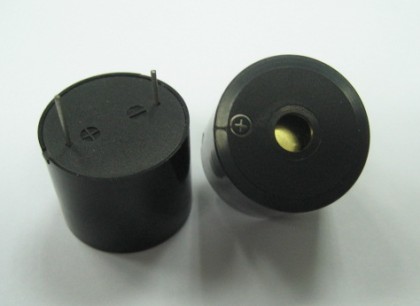

Home  >> Piezo Buzzer > Self Drive > AZ-2333S-P



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3~18
3 Rated Current mA(Max) 15 At 12VDC
4 Sound Output At 30cm dBA(Min) 88 At 12VDC
5 Resonant Frequency Hz 3300±500
6 Tone Nature Single
7 Operating Temp. ℃ -20 ~ +60
8 Storage Temp. ℃ -30~ +70
9 Weight g 8















Data Sheet
