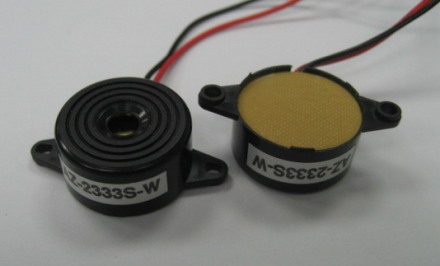

Home  >> Piezo Buzzer > Self Drive > AZ-2333S-W



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 1.5 ~ 24
3 Rated Current mA(Max) 12 At 12 VDC
4 Sound Output At 30 cm dBA(Min) 85 At 12 VDC
5 Resonant Frequency Hz 3300±500
6 Tone Nature Single
7 Operating Temp. ℃ - 20 ~ + 60
8 Storage Temp. ℃ -30 ~ + 70
9 Weight g 14















Data Sheet
