Home  >> Piezo Buzzer > Self Drive > AZ-2431S-WV



External Drive Self Drive SMD Element

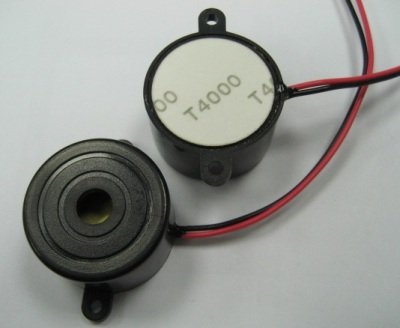

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3~20
3 Rated Current mA(Max) 14 At 12VDC
4 Sound Output At 30cm dBA(Min) 73 At 12VDC
5 Resonant Frequency Hz 3100±500
6 Tone Nature   CONTINUEOUS
7 Operating Temp. ℃ -30 ~ +75
8 Storage Temp. ℃ -40 ~ +85
9 Weight g 4.5















Data Sheet
