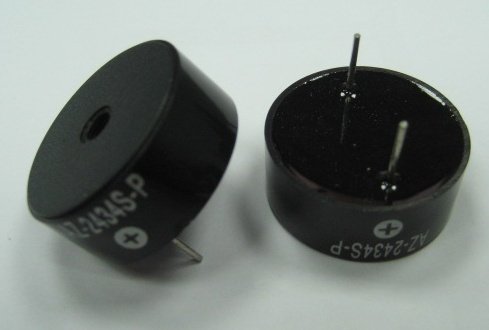

Home  >> Piezo Buzzer > Self Drive > AZ-2434S-P



External Drive Self Drive SMD Element

Piezo Transducer

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3-20
3 Rated Current (Max) mA 15
4 Min Sound Output dB 85 at 10cm
5 Resonant Frequency Hz 3400±500
6 Operating Temp. ℃ -20 ~ +80
7 Storage Temp. ℃ -30 ~ +90
8 Weight g 4















Data Sheet
