Home  >> Piezo Buzzer > Self Drive > AZ-2835S-W



External Drive Self Drive SMD Element

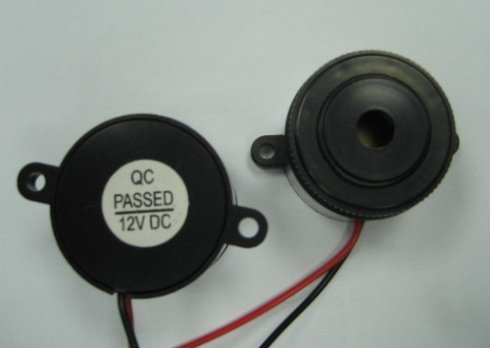

Piezo Transducer

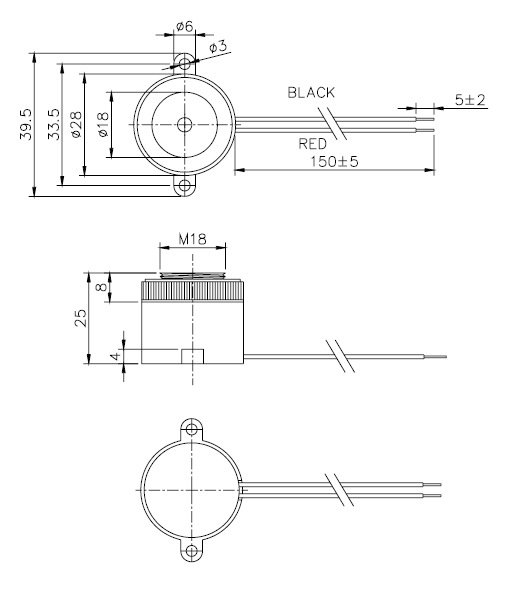

Piezo Buzzer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 4~28
3 Rated Current mA(Max) 10 At 12 VDC
4 Sound Output At 30 cm dBA(Min) 85 At 12 VDC
5 Resonant Frequency Hz 3500±500
6 Tone Nature   Single
7 Operating Temp. ℃ -20 ~ +60
8 Storage Temp. ℃ -30 ~+70
9 Weight g 15















Data Sheet
